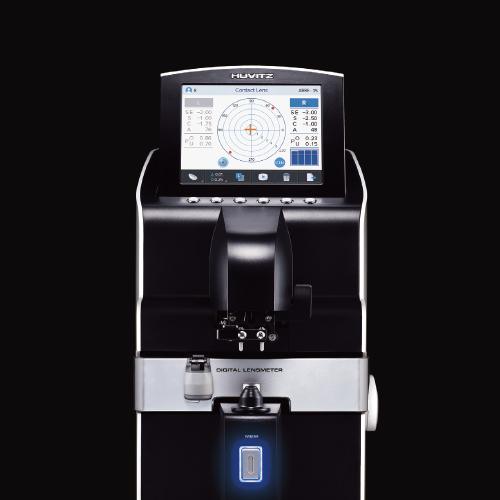

HLM-7000P
디지털 렌즈미터
UV 투과율까지 편리하게 측정하는 고급형 렌즈미터
- Conveniently measures with various modes
- Wavefront 기술로 모든 종류의 렌즈를 정확하게 측정
- Easy to use with an LCD monitor and screen tilting
MENU
Explore Details
Conveniently measures with various modes
HLM-7000P measures the UV transmittance of regular lenses and sunglasses without the need for a separate UV tester and displays the measurement values as intuitive bar graphs for easy data interpretation. Additionally, the Dark Sunglasses mode allows the accurate measurement of dark-tinted sunglasses lenses. The built-in PD sensor makes it easy to measure the pupillary distance.



Wavefront 기술로 모든 종류의 렌즈를 정확하게 측정
Implementation of Hartmann Sensor Wavefront Analysis Technology with more measuring spots maximizes measurement accuracy even for multi-focal and high- index lenses. Automatic recognition of multi-focal lenses supports easy measurement with measurement guidance on display.

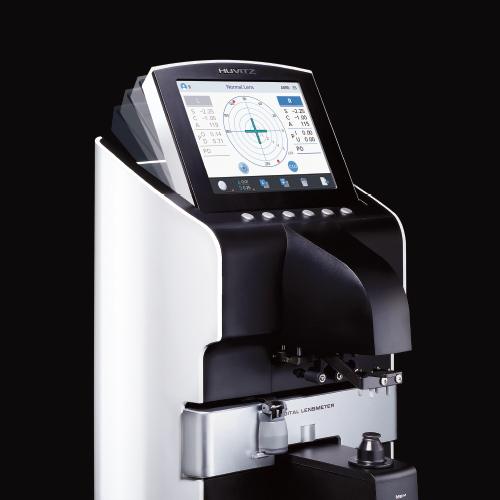

Easy to use with an LCD monitor and screen tilting
The LCD screen can be adjusted from -5 to 60 degrees, providing a clear and comfortable view from any angle.

Video
Huvitz MEMBERS
더 많은 안과컨텐츠를 원하신다면
휴비츠멤버스에 가입하세요.
Specifications
1. MEASUREMENT MODES
Cylinder
–, +, ±
Prism
Rectangular / Polar / Displacement
LED wave
525nm (Green)
Contact Lense
Hard / Soft Contact Lens
ABBE Values
Manual Revision
Wave
e-Line, d-Line
2. MEASUREMENT MODE
Screen
5.7”Color LCD Panel (640*480)
Interface
RS-232
Printer
Printer
Communication Speed (BPS)
9600,57600,115200 bps
Product Size
190(W) x 237(D) x 377(H) mm
Product Weight
5.5 Kg
Product Size
AC 100 - 240 V ~, 50/60Hz, 0.3-0.2A
3. MEASUREMENT RANGE
Spherical Power
0D ~ ±25D (0.25/0.12/0.06/0.01)
Cylinder Power
0D ~ ±10.00D (0.25/0.12/0.06/0.01)
Cylinder Axis
0° ~ 180° (1o step)
Progressive Power
0 ~ 10D (0.25/0.12/0.06/0.01)
Prism
0 ~ 20 (0.25/0.12/0.06/0.01)
** 사양 및 디자인은 예고 없이 변경될 수 있습니다.
