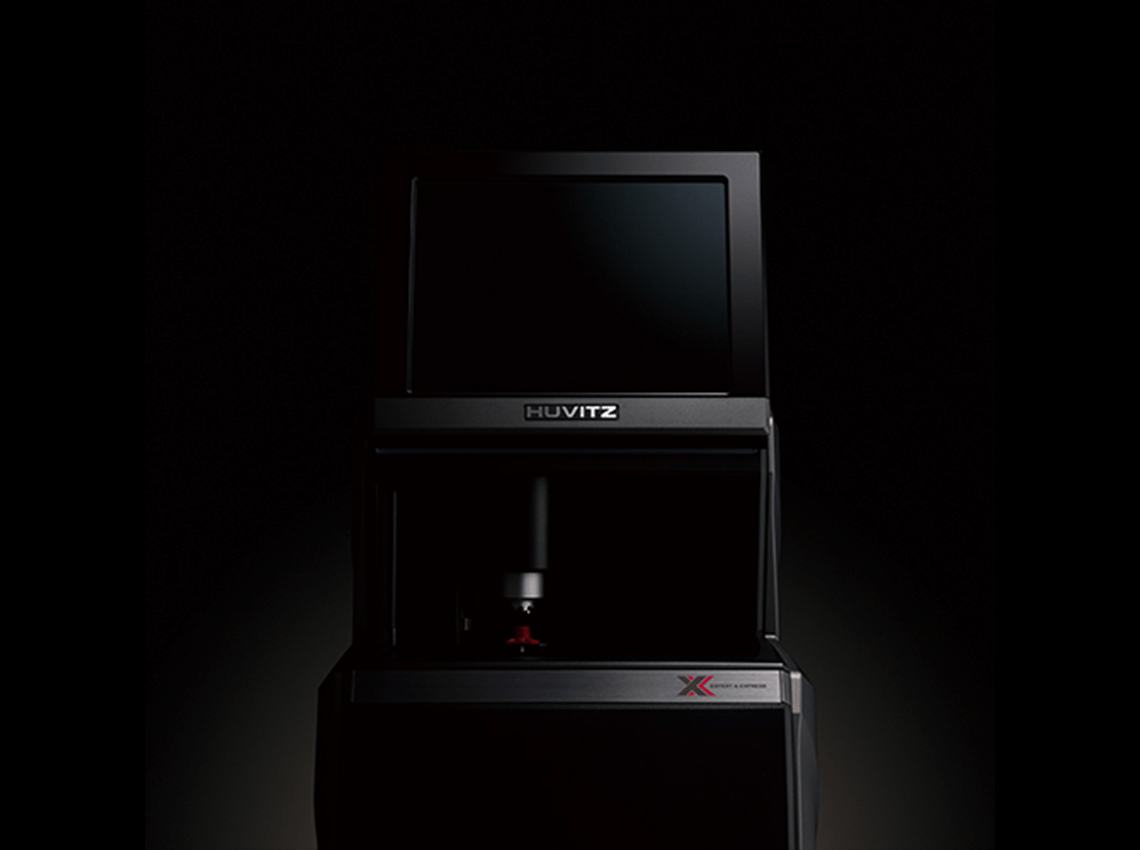

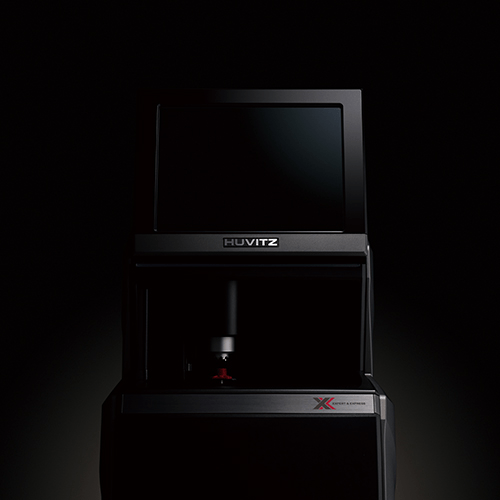

HAB-910
오토블로커
빠르고 정확한 측정, 1 Stop으로 편리하게 측정하는 3in1 오토블로커
- 트레이서, 렌즈미터, 블로커 기능을 내장한 3in1
- 1 STOP으로 손 댈 필요없이! 블록 어댑터 자동 장착
- 세계적인 광학 기술의 구현으로 빠르고 정확하게 측정
- 4배 향상된 속도와 성능
MENU
Explore Details
트레이서, 렌즈미터, 블로커 기능을 내장한 3in1
트레이서, 렌즈미터, 블로커 기능이 내장되어 정확도와 편의성이 높아졌습니다.

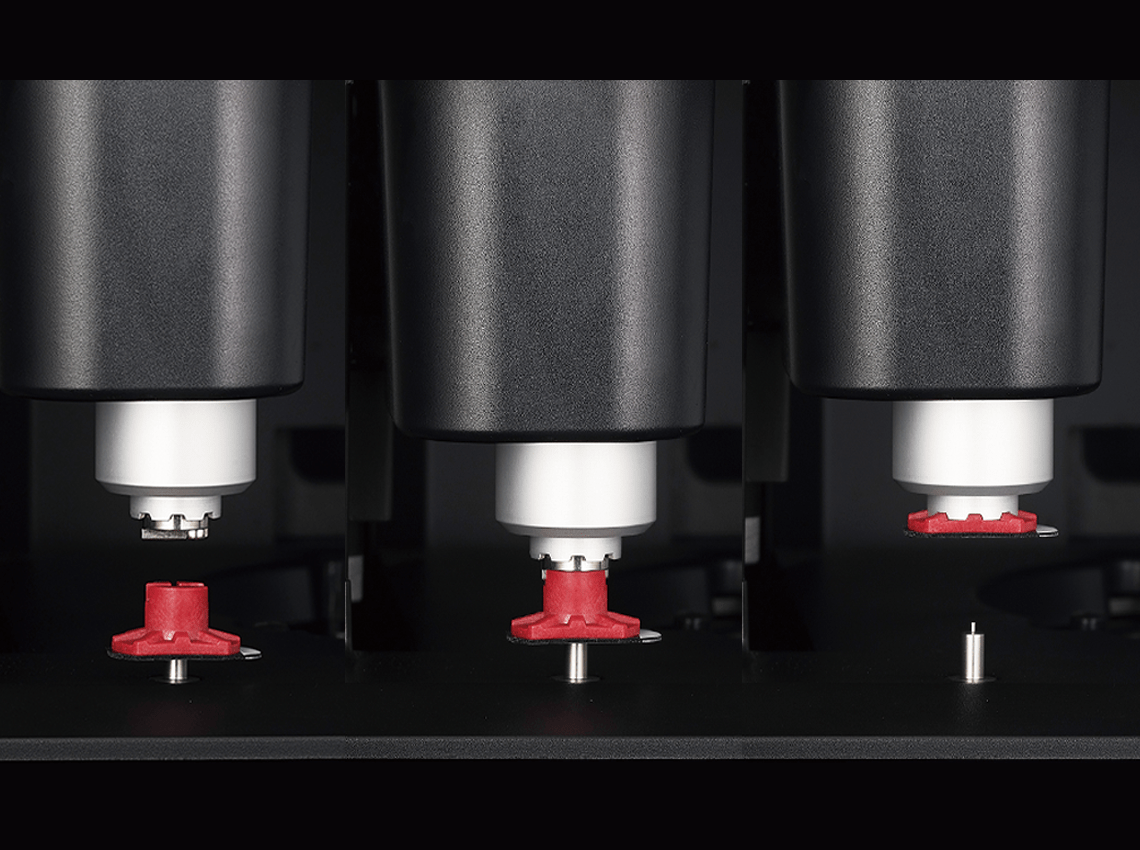

1 STOP으로 손 댈 필요없이! 블록 어댑터 자동 장착
자동화된 렌즈 그리핑 기능으로 미끄러짐 및 흔들림이 없어 정확성이 더욱 향상되었습니다. 또한 자력에 의한 자동 블록 어댑터 장착 기능으로 놓여진 방향에 상관없이 화면 터치만으로 렌즈 블로킹을 바로 시작합니다.
세계적인 광학 기술의 구현으로 빠르고 정확하게 측정

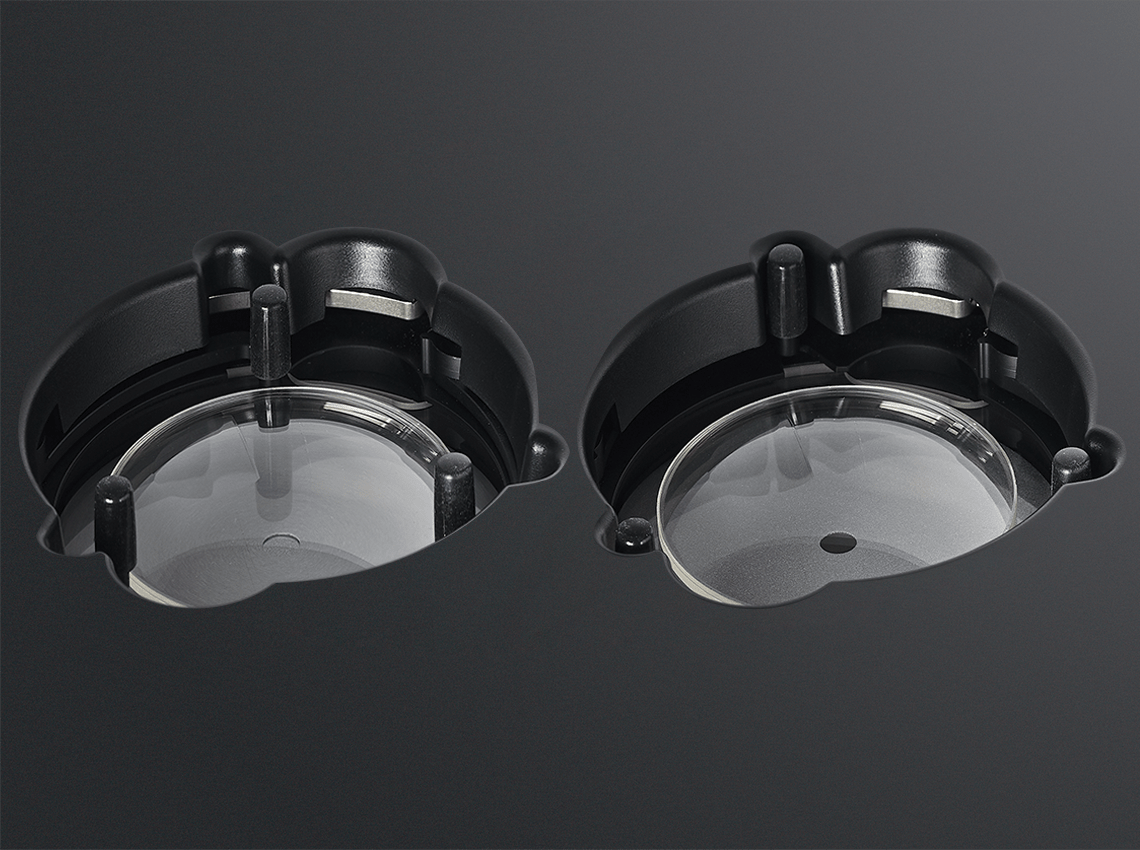

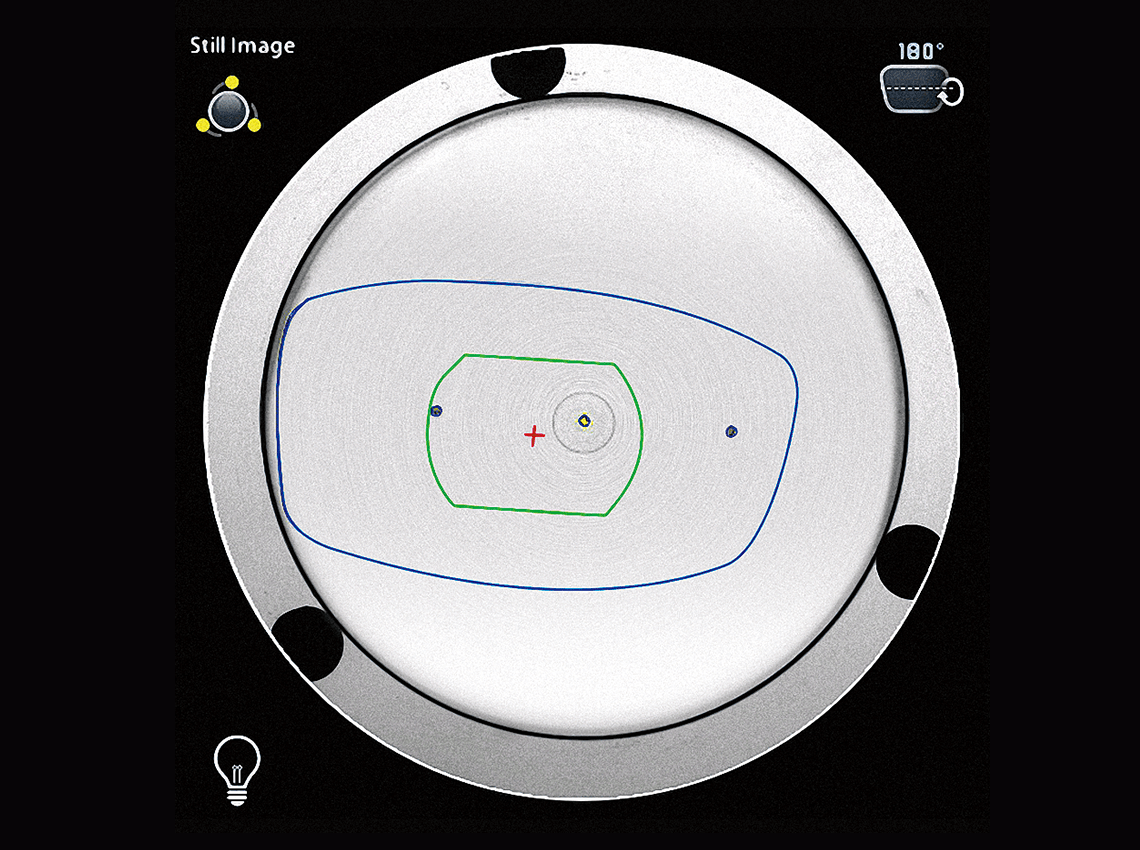

해외 특허출원 중인 Hartmann 렌즈미터와 Retro-Reflection (재귀반사) 구조의 결합으로 정밀한 렌즈 인식과 빠르고 정확한 렌즈미터 측정이 가능합니다. 또한 위치가 고정된 Hartmann 렌즈미터 구조와 광학손실을 보완하는 Optical Algorithm으로 광학중심 인식 및 난시축을 정확히 찾아내어 보다 빠르고 정밀한 측정이 가능해집니다



4배 향상된 속도와 성능

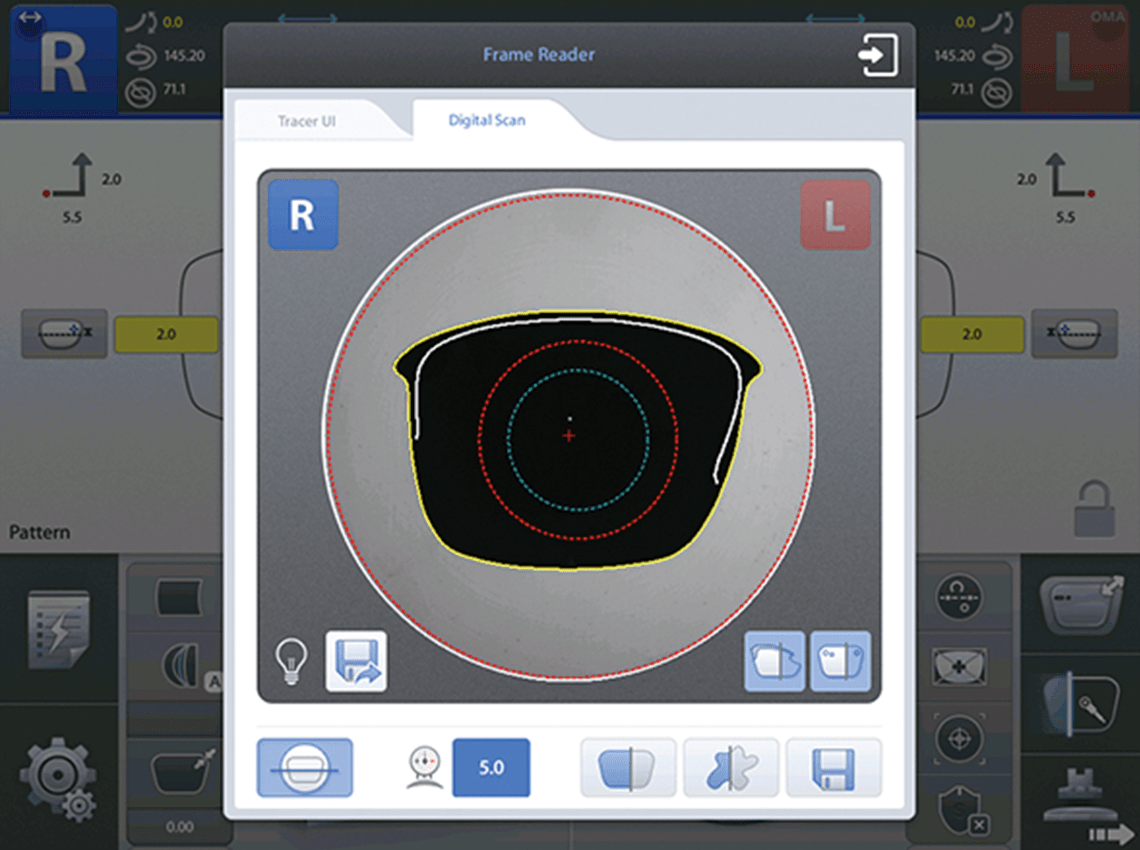

렌즈미터 측정 속도와 스캔 & 컷과 스텝 베벨의 디지털 스캔 속도는 최고 4배 이상 속도가 향상 되었습니다.
Video
Huvitz MEMBERS
더 많은 안과컨텐츠를 원하신다면
휴비츠멤버스에 가입하세요.
Specifications
1. Tracing
Tracing Type
Automatic Binocular Tracing
Tracing Mode
Auto, Semi-Auto (Manual tip-positioning)
Tracing Size
Frame ø 16.0 ~ 92.0 mm, Pattern ø 16.0 ~ 84.0 mm
Frame Material
Metal, Hard Plastic, Soft Plastic, Ultem
Frame Data Processing
FPD, Frame Curve, Circumference, 3D Angle, Concave Shape (Demo lens)
2. Lensmeter
Measurement
- 25 D ~ + 25 D
Sph and Cyl Measurement
- 6 D ~ +6 D (Cylinder included, min. Step 0.01 D)
3. Blocking
Blocking Tolerance
- 0.5 ~ + 0.5 mm, Axis ± 1°
Blocking Method
Automatic loading block adaptor with magnet
Automatic blocking with mechanical arm
Blocking Pressure
2.0 kgf
Blocking Assistance
Gripper
Block adaptor loading check
Block attachment check
Camera zoom, Lens shortage check
PD/OH live adjustment
Auto brightness control
4. Lens Recognition
Lens Recognition Mode

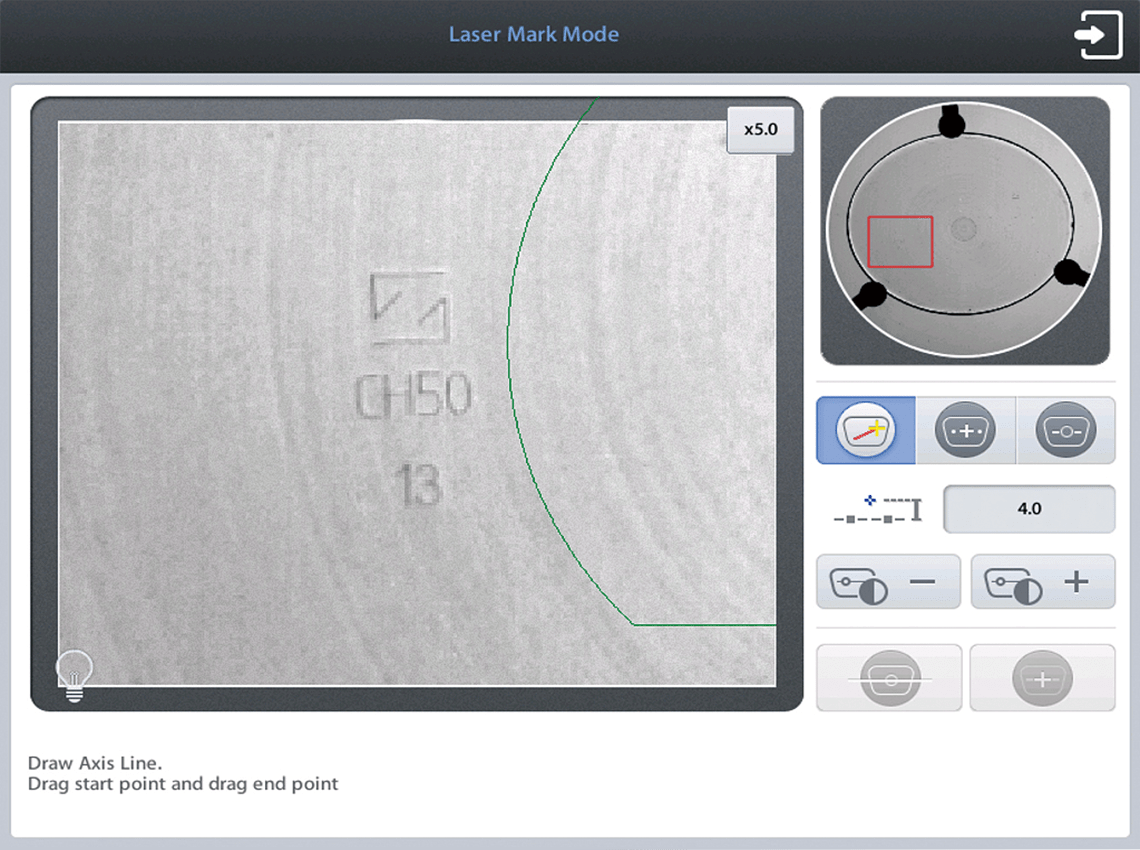

Intelligent, Auto, Manual, Semi-Auto (for laser mark)
Lens Type Recognition
Single, Bi-focal, Progressive, 3-Dot
Digital Scan
Shape, Hole/Slot/Notch, Step bevel line
5. Layout
Layout Factores
FPD/DBL, PD (Binocular, Monocular)
Cyl Axis, OH (ΔY, Mixed Height, Box Height)
Centering Method (Box Center, Optical Center)
6. Edging
Edging Factors
Lens material (Refer to the edger)
Edging type (Refer to the edger)
Edging position (Refer to the edger)
Edging option : Polishing, Safety beveling, Safety mode
7. Editing Functions
Functions
Job manager, Digital pattern, Hole editor
Asymmetric bevel editor, Scan & Cut shape editor
Step bevel editor, Image/CAD file converter
OMA import/export, CAD file export
Auto job save & transmission, R/L shape correction
DCS/OMA compatibility
8. Hardware Specification
Utilities
Tiltable LCD screen
USB Memory
Barcode reader interface
Display
9.7 inch Color TFT LCD (1024 x 768) with touch screen
Dimensions / Weight
306 (W) x 530 (D) x 511 (H) mm / 23.6 kg
Power Supply
AC 100 - 240 V, 50/60 Hz
Power Consumption
75 W
** 사양 및 디자인은 예고 없이 변경될 수 있습니다.
