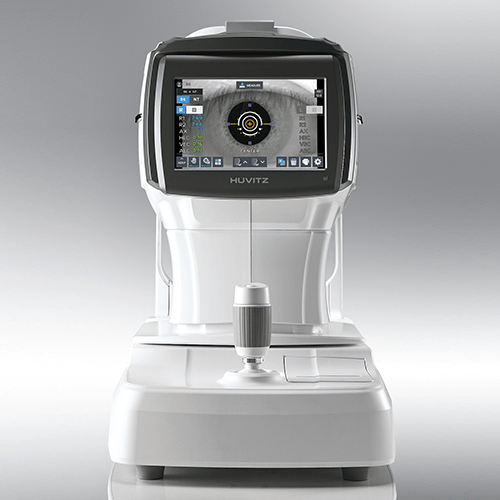

HTR-1A
Auto Ref/Keratometer, Non-contact Tono/Pachymeter
4-in-1 integrated ophthalmic device for refraction and IOP measurement, and more
- 4 in 1 System : Full Auto Ref/Keratometer, Non-contact Tono/Pachymeter
- Compact Design
- Full Auto Tracking & Shooting
MENU
Explore Details





4 in 1 System
HTR-1A has the Cornea Thickness, IOP, and Refractive Power which are essential functions for Eye Clinic, it can measure the indispensable data for the Customized Lens prescription
Compact Design
By compact design and size, HTR-1A is possible to save users' space. 4 measurements from 1 device, patients don't need to move their places and it can save their time as well


Full Auto Tracking & Shooting
As long as the measuring point is placed in the automatic tracking range, it can trace and shoot the pupil measuring point by the 3D drive mechanism. By clicking the button once will be measured the binocular precisely and efficiently
Video
Huvitz MEMBERS
If you want more ophthalmology & optometry content
join Huvitz Members
Specifications
1. Refractive power measurement
Distance between vertex of cornea (VD)
0.0, 12.0, 13.75, 15.0
Spherical prescription (SPH)
-30.00 ~ +25.00 D (VD = 12 mm) (0.01/0.12/0.25 D unit)
Astigmatism prescription (CYL)
0.00 ~ ±12.00D (0.01/0.12/0.25 D unit)
Astigmatism axis angle (AX)
0 ~ 180° (1° unit)
Astigmatism indication
-, +, MIX
Pupil distance (PD)
10 ~ 85 mm
Minimum pupil diameter that can be measured
Ø2.0 mm
** The accuracy specifications are based on the results of eye model testing preformed in accordance wit h ISO10342.

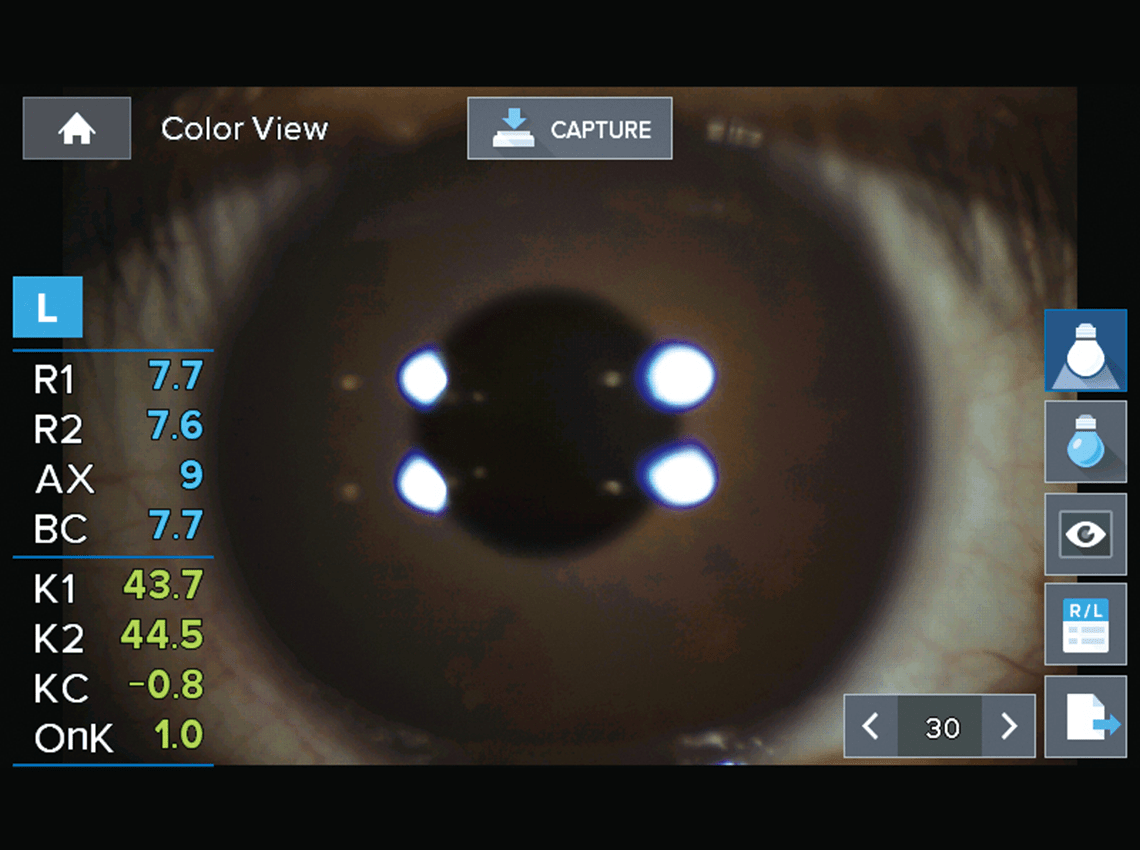

2. Cornea curvature radius measurement
Corneal curvature radius
5.0 ~ 13.0 mm (0.01 mm unit)
Cornea refractive power
25.96D~67.50D (cornea equivalence’s refractive index: 1.3375) indication unit: 0.05/0.12/0.25D unit
Cornea astigmatism prescription
0.0 ~ -15.00 D (Increments: 0.05/0.12/0.25 D)
Cornea astigmatism axis angle
0 ~ 180° (1°/ 5° unit)
Cornea diameter measurement
2.0 ~ 14.0 mm (0.1 mm unit)
** Keratometry is in accordance with TypeB, ISO 103432014.

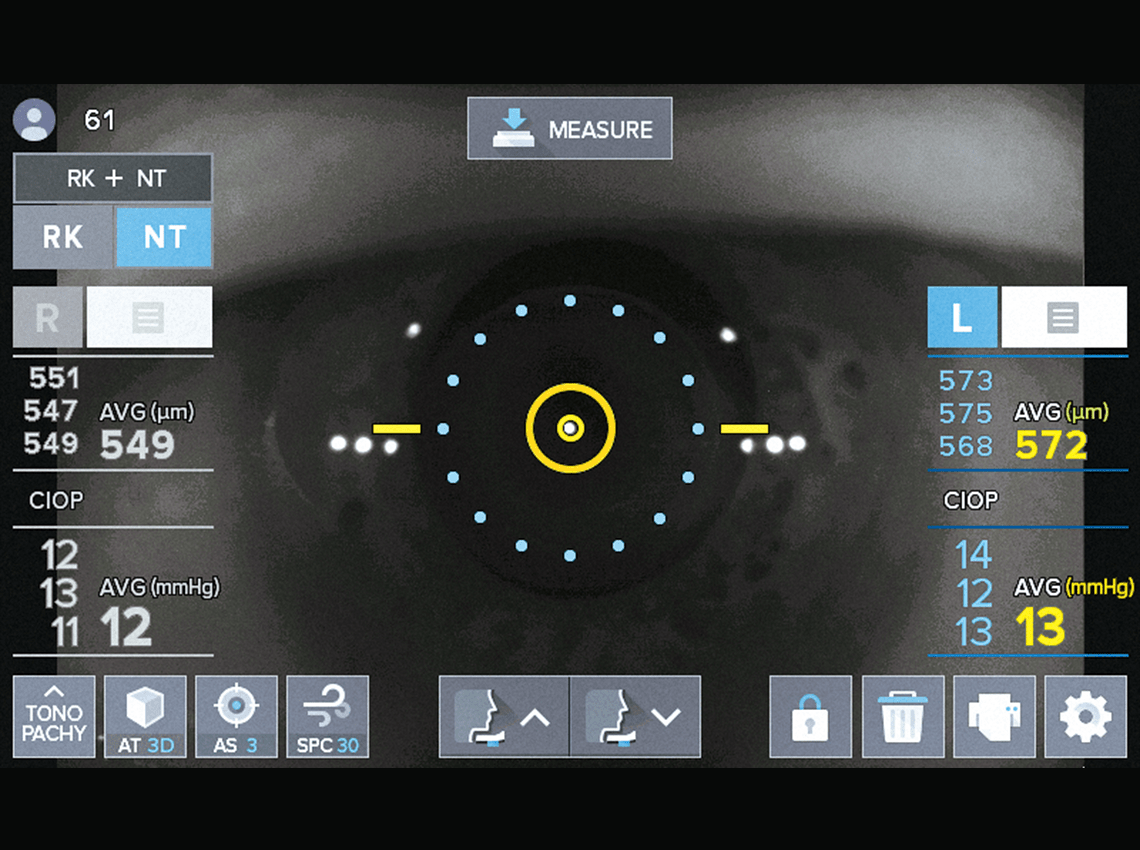

3. IOP measurement
IOP range
1 ~ 60 mmHg
SPC 30 / SPC 60, 30 / 60
Measurement increment
1 mmHg (Average : 0.1 mmHg)
Accuracy
±5.0 mmHg
4. Corneal thickness measurement
CCT measurement range
300 ~ 800 μm
Measurement increment
1 μm
Accuracy
±10.0 μm (in case of The calibration Model eye)
5. Wireless I/F
Protocol
IEEE802.11b 2.4GHz WiFi
Security mode
WPA2-PSK
IP configuration
DHCP mode
6. Auto travel distance
Up & Down
83 mm (±3 mm) : Total
RK Mode / NT Mode
40 mm (±5mm)
Right & Left
90 mm (±2 mm)
Front and back
40 mm (±2 mm)
7. Automatic tracking scope
Up & Down
± 5 mm
Right & Left
± 5 mm
Front and back
± 5 mm
8. Chin rest travel distance
Up & Down
65 mm (±3 mm)
9. Data memory
10 session worth of measurement values for each of the eyes on the left and right
10. Interface
RS-232C
USB
Internal Software Update from PC (Engineer Only)
Ethernet
Wifi
Ext. VIDEO
11. Hardware specs

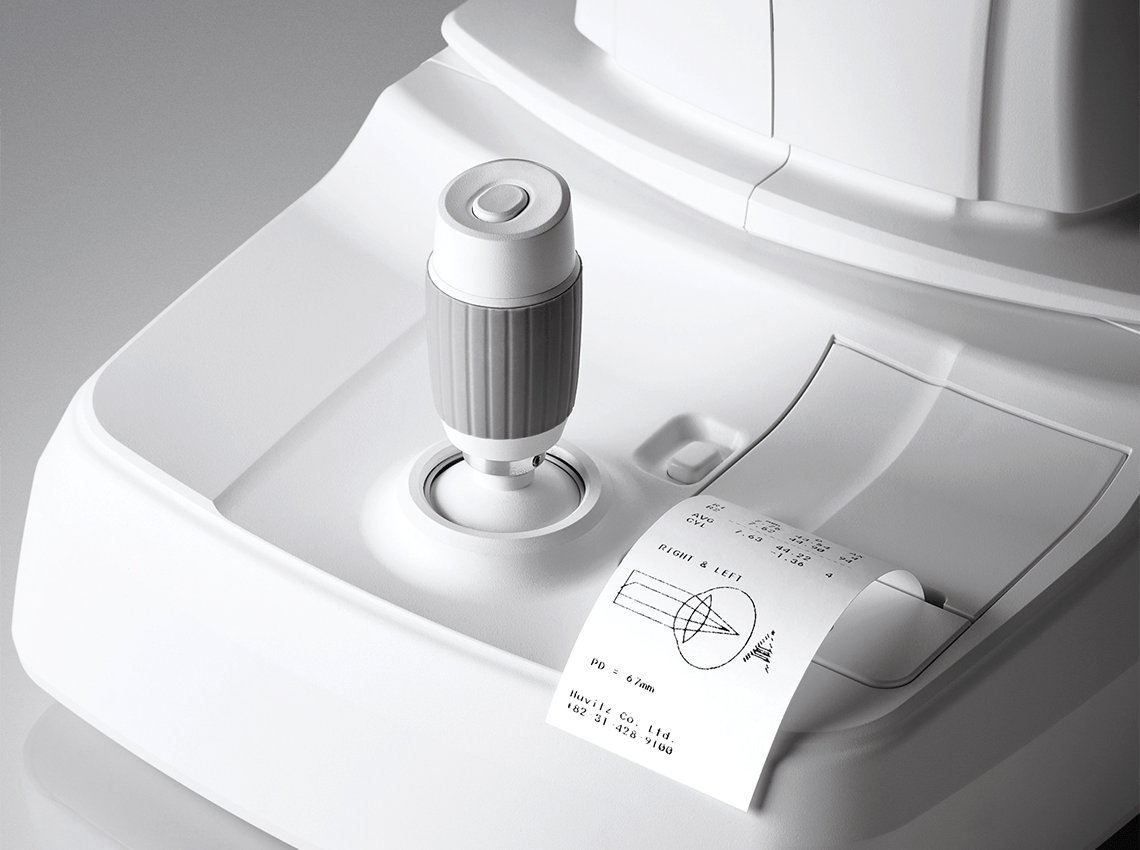

Built-in printer
Thermoelectric line printer/Auto Cutting
Power-saving function
Key power is blocked when the measurement is stopped up the set time. Recovered when pressing on the button or when the screen is touched.
Monitor
85° Tiltable 7” Color LCD IPS Panel (800*480), Resistive Touch panel
Dimensions
301(W) x 535(D) x 506(H) mm
Weight
23.8 Kg
Power supply
AC100-240, 50/60Hz, 0.6-0.9A, 144VA(Max.)
* Specification and design are subject to change without notice.
