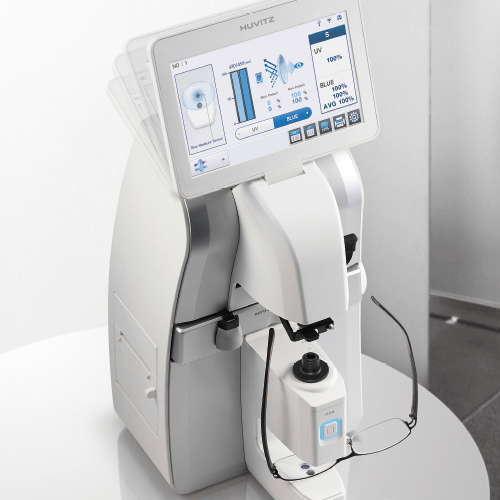

HLM-9000
Digital Lensmeter
High-end auto lensmeter that conveniently measures blue light blocking and UV transmission
- Conveniently measures the transmittance rate of blue light blocking lenses and the UV transmittance of sunglasses
- Precision Measurements with Wavefront Technology
- Enhanced convenience with an LCD touch panel and wide tilting angle
MENU
Explore Details

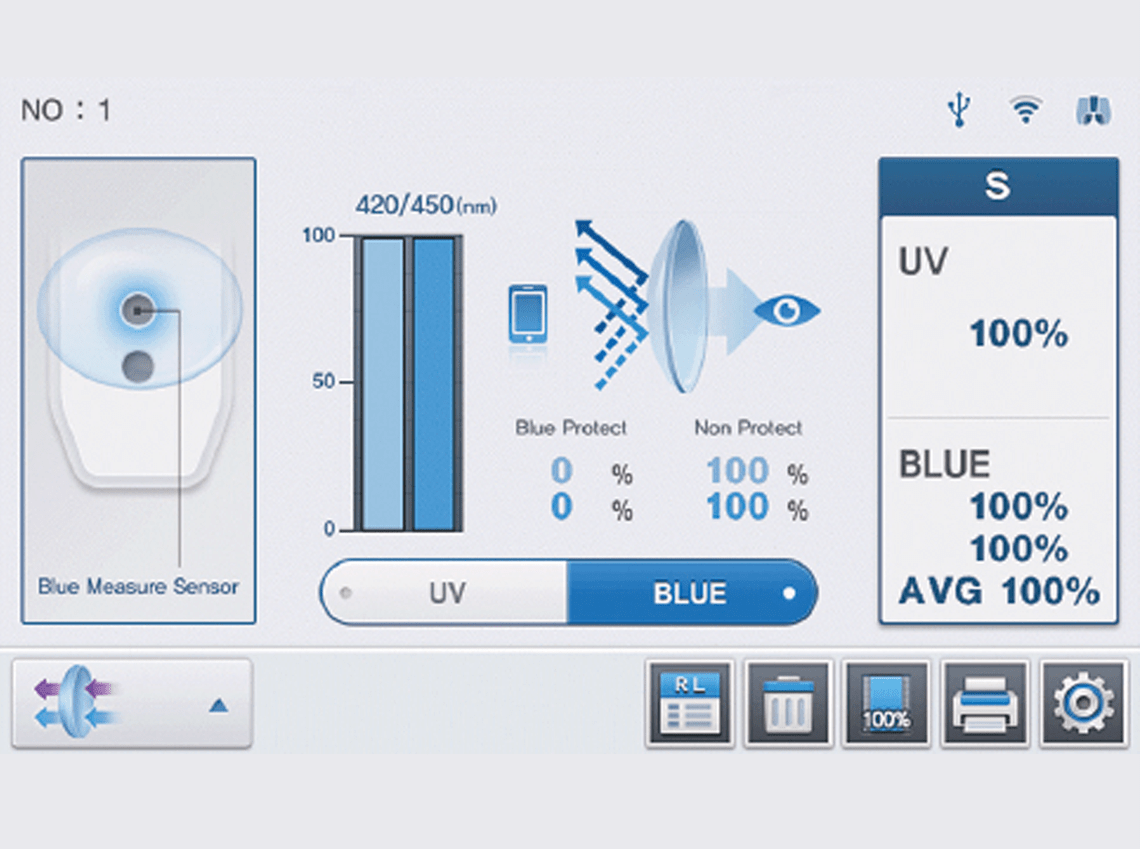

Conveniently measures
The HLM-9000 measures the transmittance of blue light blocking lenses and provides easy-to-understand UV transmittance levels for single vision lenses and sunglasses.

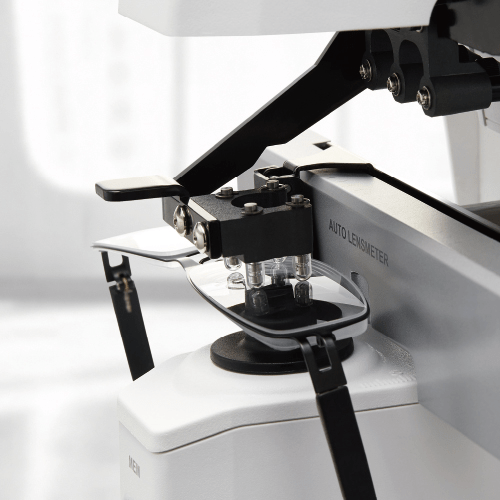

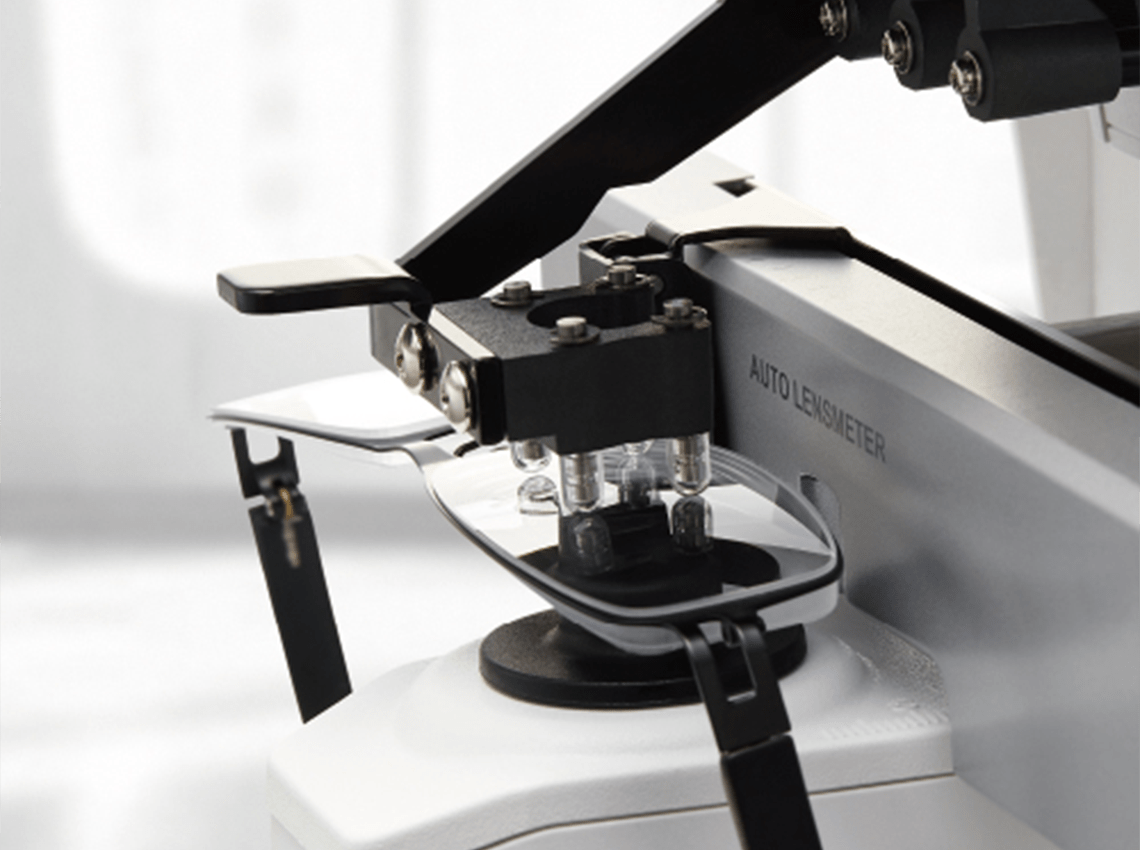

Precision Measurements with Wavefront Technology
Implementation of Hartmann Sensor Wavefront Analysis Technology with more measuring spots maximizes accuracy in measurement even for multi-focal and high curved lenses. Automatic recognition of multi-focal lenses supports easy measurement with measurement guidance on display and even measurement of sunglasses and prism multi-focal lenses is simple.

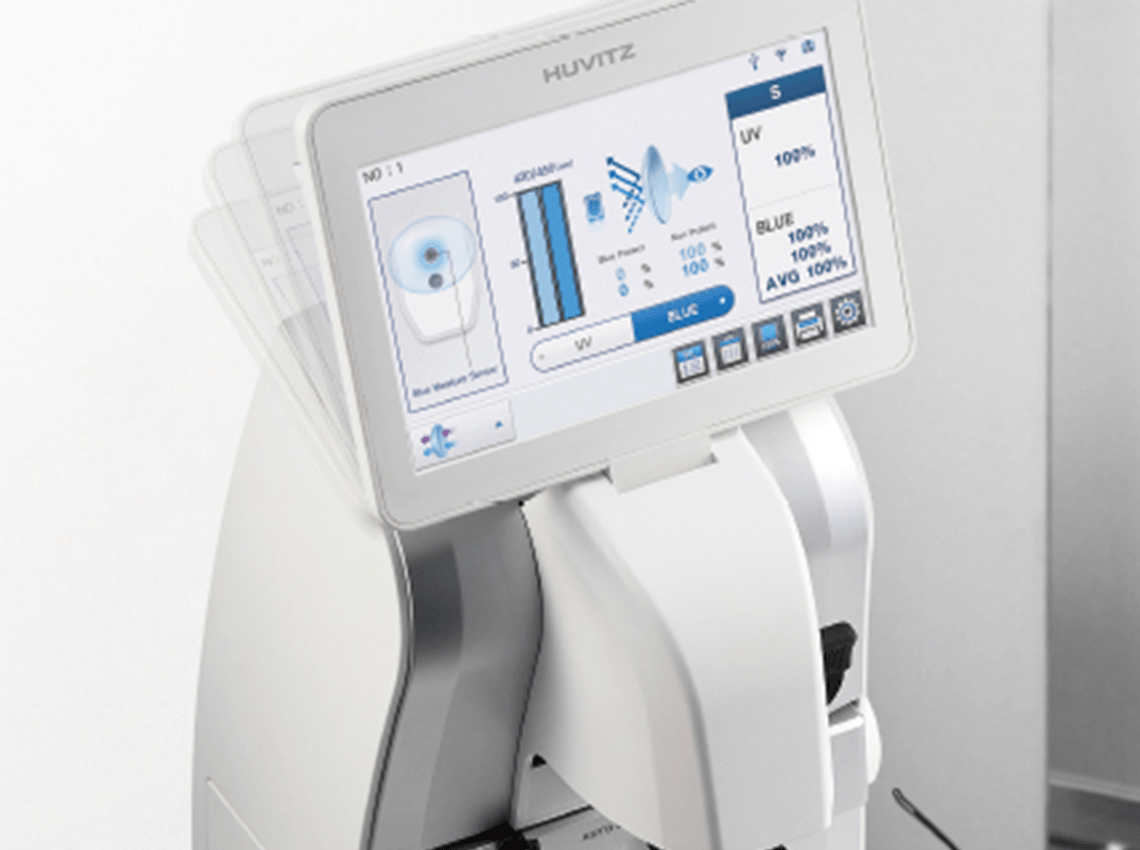

Enhanced convenience with an LCD touch panel and wide tilting angle
The 7-inch LCD screen with a 178˚ viewing angle reduces work fatigue and boosts efficiency. It’s clear, bright display is readable from any direction, thanks to the wide tilting angle.

Video
Huvitz MEMBERS
If you want more ophthalmology & optometry content
join Huvitz Members
Specifications
1. Measurement Specification
Spherical Power
0D ~ ±25D (0.25/0.12/0.06/0.01)
Cylinder Power
0D ~ ±10.00D (0.25/0.12/0.06/0.01)
Cylinder Axis
0° ~ 180° (1° step)
Progressive Power
0 ~ 10D (0.25/0.12/0.06/0.01)
Prism
0 ~ 20△(0.25/0.12/0.06/0.01)
PD Measurement
0 mm ~ 84 mm
Applicable Lens size
Φ20 mm ~ Φ120 mm
2. Wireless I/F
Protocol
IEEE802.11b 2.4GHz WiFi
Security mode
WPA2-PSK
IP configuration
DHCP mode
3. The others
Measurement mode
General, Progressive, Auto Detect, Contact, UV/BLUE
Cylinder
±, + , -
Prism
Rectangular / Pole / Displacement
LED wavelength
545 nm (Green)
395 nm (UV)
420 nm / 450 nm (BLUE)
Contact Lens
Hard/Soft Contact Lens
Abbe value
Manual Revision
Wave
e-Line, d-Line
Screen
85° Tiltable 7”Color LCD IPS Panel (800*480)
Touch panel
Printer
Auto cutting Thermal Printer
Printer paper (Width 57mm, Diameter 50mm, Length 33M)
Interface
RS-232,
WiFi (For communication with HDR-9000),
USB 2.0 (One port : For service)
Communication Speed (BPS)
9600,19200,38400,57600,115200 bps
Product Size
222(W) x 240(D) x 370(H) mm
Product Weight
5.4Kg
Power Supply
AC 100 - 240 V ~, 50/60Hz, 0.5-0.3A
4. Measurement Specification
Sphere and cylinder refractive power
Measuring Range
< 0D ≥ - 5D | 0D ≤ +5D
< -5D ≥ - 10D | > +5D ≤ +10D
< -10D ≥ - 15D | > +10D ≤ +15D
< -15D ≥ - 20D | > +15D ≤ +20D
< -20D | > +20D
Precision
±0.06
±0.09
±0.12
±0.18
±0.25
Prism Value
Measuring Range
> 0Δ ≤ 5Δ
> 5Δ ≤ 10Δ
> 10Δ ≤ 15Δ
> 15Δ ≤ 20Δ
> 20Δ
Precision
0.25
0.25
0.50
0.75
1.00
Pupil distance
± 0.5 mm
Transmission measurement
± 5%
5. Environmental conditions
Operating
Temperature: 10℃ to 35℃ (50°F ~ 95°F)
Relative humidity : 30% to 90% (with non-condensing)
Atmospheric pressure : 800hpa to 1060hpa
Storage
Temperature: -10℃ to +55℃ (14°F ~ 131°F)
Relative humidity : 10% to 95%
Atmospheric pressure : 500hpa to 1060hpa
Transportation (with packaging)
Temperature: -40℃ to +70℃ (-40°F ~ 158°F)
Relative humidity : 10% to 95%
Atmospheric pressure : 500hpa to 1060hpa
* Specification and design are subject to change without notice.
